Titan Robotic Mower
Elite Grass Maintenance. Without the Elite Price.
Full-Unmatched Efficiency & Quality

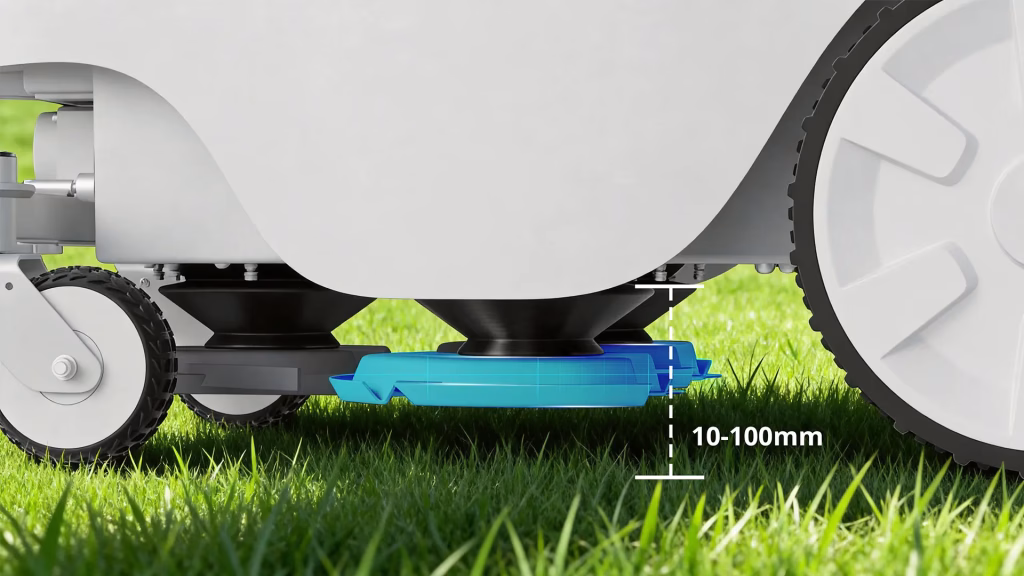

Adjustable Cut Height
Adjust cutting height from 10–100 mm in the app to match turf type and season.

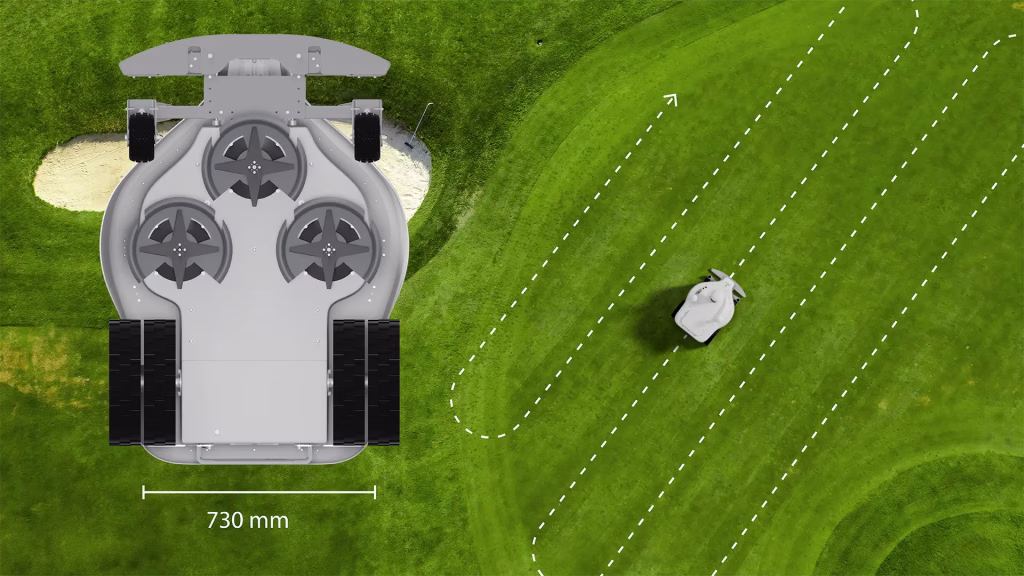

Wide-Cut Productivity
730 mm cutting width delivers high daily output—up to 36,000 ㎡ per day.

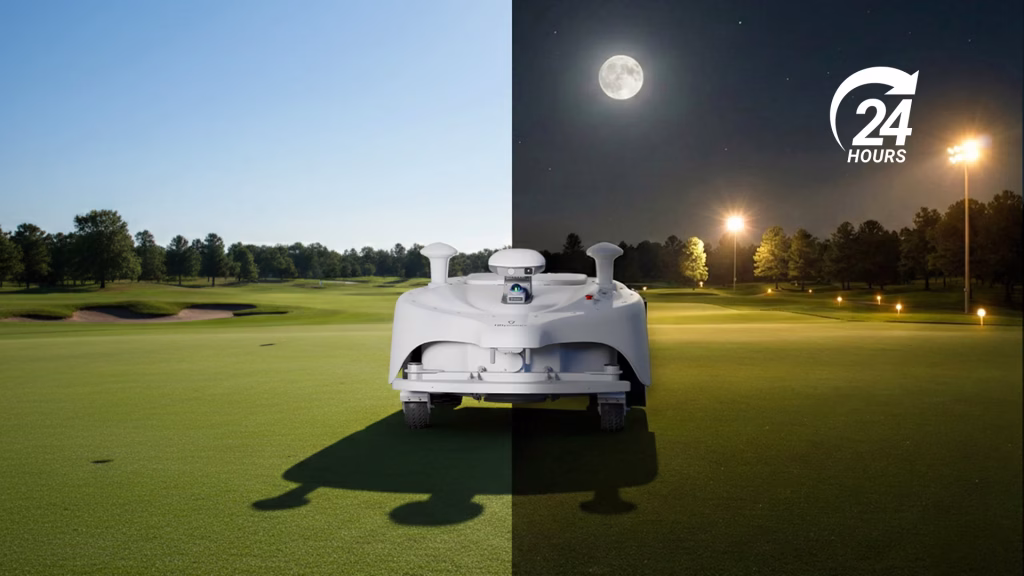

Night time Quiet Operation
Allow for silent mowing at night to maximize course availability during the day.
Precision at Scale
Uniform quality, unmatched efficiency. Standardize your turf maintenance with high-capacity engineering that brings total operational flexibility to large-scale landscapes.
Unified Operations Management

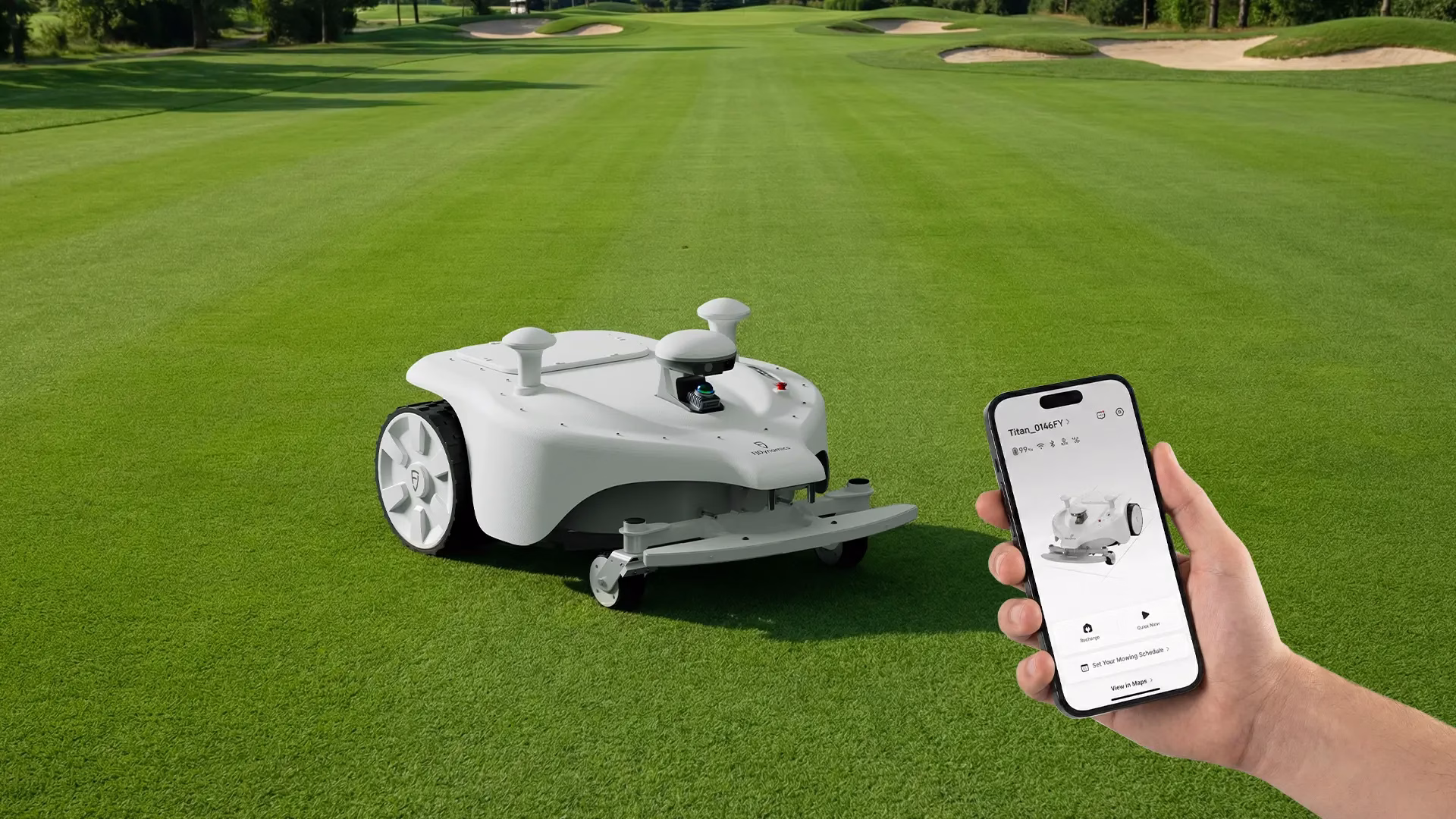

One App, Total Control
Tap to deploy, monitor real time progress and customise work zones – all through your phone.

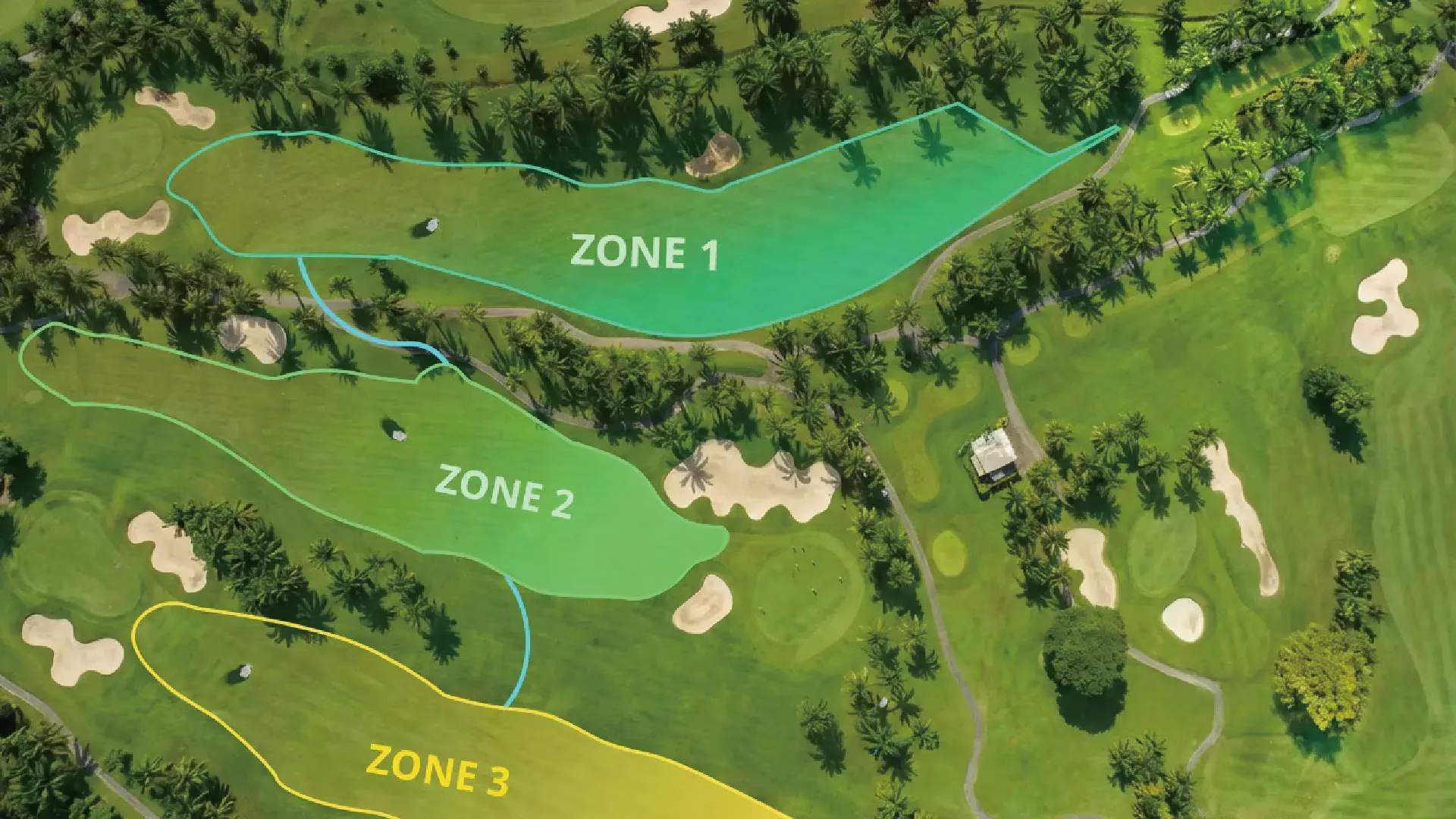

Multi-Field Management
Automated multi-field mowing with seamless transition between task areas.
2 in 1 Titan + Line Marker Kit
Reduce Paint Usage by 50%+
For a full-size soccer field, manual line marking requires about 8L, while the robotic line marker only needs around 4L.
Cut Labour Costs by up to 90%
Create the layout, start with one click, no human intervention required, saving up to 90% in labour costs.
10 Football Fields per Charge
A single full charge allows for continuous line marking of 10 full-size football fields.
Smart Mapping. Seamless Marking.
Convenient Mapping

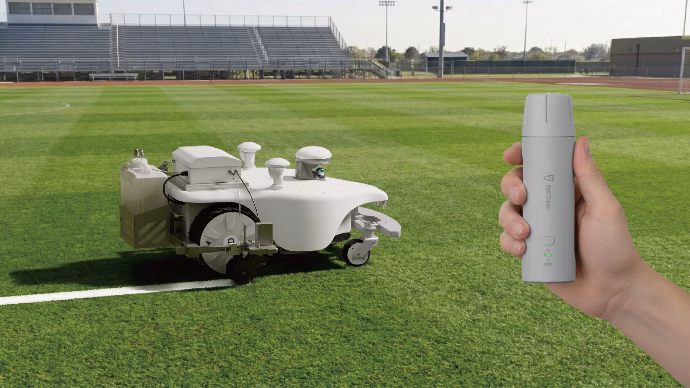

Create field maps in minutes using the FJD Trion V4e Pro—no need to bring the robot to the site.

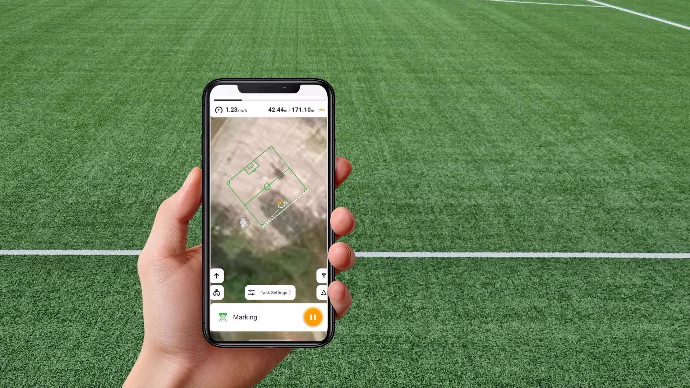

Seamless Spray Resume
Whether switching fields or pausing to refill paint, the robot resumes precisely where it left off—no overlapping, no wasted paint.
Comprehensive Mowing Solution
Titan works seamlessly with N10 CORS, P2 and GreenMaster, enabling precise mapping, smart management, and efficient mowing across diverse field conditions.

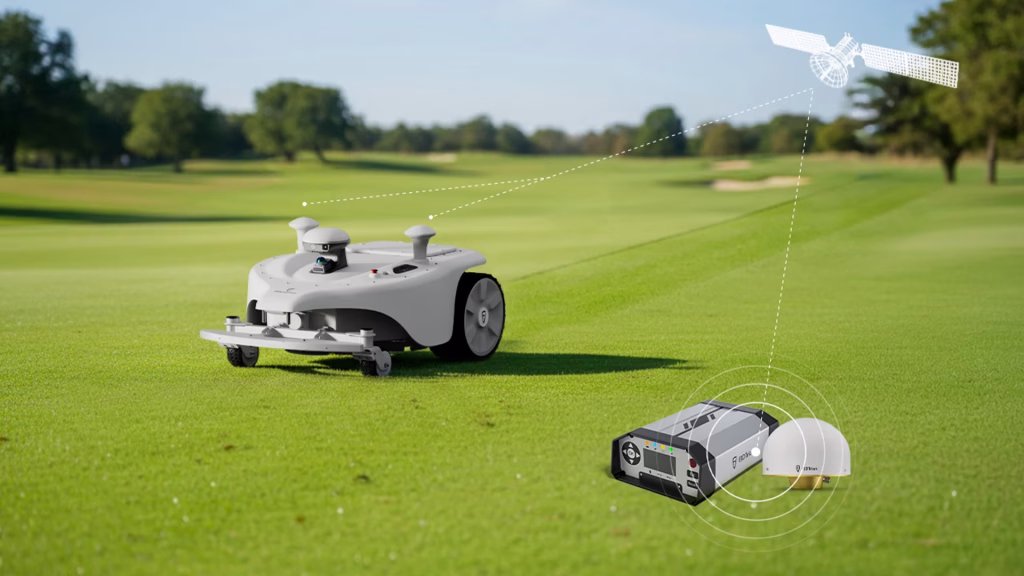

N10 CORS for Mowing
Providing stable RTK correction for mowing, the FJD Trion N10 CORS ensures precise and reliable positioning even in complex field conditions.

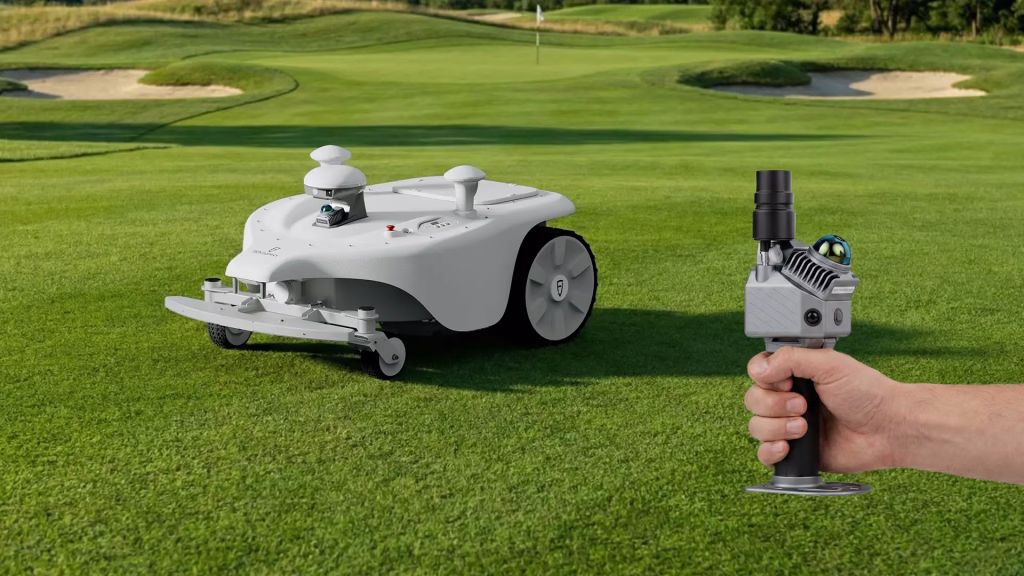

One Scan, Endless Reusability
Map in minutes with the FJD P2 Scanner—no manual driving required. Create a digital asset shared across your entire fleet.
GreenMaster Platform Integration
Integrated with the GreenMaster Platform, all task maps and machine data are managed in one place for streamlined digital operations.
Application Scenarios
Golf Course
Sports Pitch
Estates and Gardens
Specifications
| Fast battery swapping mode* | 72 h Maximum coverage 126,000 ㎡ (31 acres) 24 h Maximum coverage 42,000 ㎡ (10.4 acres) |
| Automatic charging mode | 72 h Maximum coverage 108,000 ㎡ (26.7 acres) 24 h Maximum coverage 36,000 ㎡ (9 acres) |
| Max Mowing Area per Charge | 18,000 ㎡ (4.5 acres) |
| Max Climbing Ability | 25° / 46% |
| Front suspension chassis | Standard |
| Boundary Type | Virtual Wire |
| Cutting Mode | Customized Angle Mowing |
| Weight | 122 kg / 287 lbs |
| Dimensions | 1400 × 1050 × 650 mm / 55.1 × 41.3 × 25.6 in. |
| Software Update | OTA |
| Connectivity | 4G, Wireless Connectivity |
| IP rating | IP64 |
| Operating temperature | 0-55°C / 32-131°F |
| Cutting Height | 10-100 mm / 0.4-4 in. |
| Cutting Width | 730 mm (260 mm each) / 28.7 in. (10.2 in. each) |
| Travel Speed | 0-3.6 km / h |
| Cutting disc (pivoting razor blades per disc *6) | 3 |
| Weight | 33 kg (72.8 lbs). |
| Dimensions | 600×1300×700 mm / 23.6×51.2×27.6 in. |
| IP rating | IP54 |
| Max marking speed | 3.6km/h (2.2 mph) |
| Paint tank capacity | 25L / 5.5 gal |
| Line width range | 60-120 mm / 2.4–4.7 in. |
| Nozzle height | 30-120 mm / 1.2–4.7 in. |
| Operating temperature | 5–35°C (41–95°F) |
| Max marking time per charge | 7.5 h |
| Charging mode | Manual & automatic |
| Fast battery swapping | Standard |
| Battery life | 480 min |
| Charging time | 120 min |
| Positioning | RTK + LiDAR + Vision |
| NTRIP | Standard |
| FJD base station & CORS station | Standard |
| Complete mower | Standard |
| Auto-charging station | Standard |
| 2 kWh battery | Standard |
| High-strength cutting blade | Standard |
| V4e handheld marker | Standard |
| FJD base station | Standard |
| GPS module | Optional |
| Independent anti-theft module | Optional |
| *Calculated based on 24-hour operation. Actual coverage depends on user working hours. |
Request Demo
Why not drop us a line to request a demo?
