RCM01 Robotic Cylinder Mower
Precision in Every Cut. Automation in Every Corner.
Tournament-Grade Turf Finish

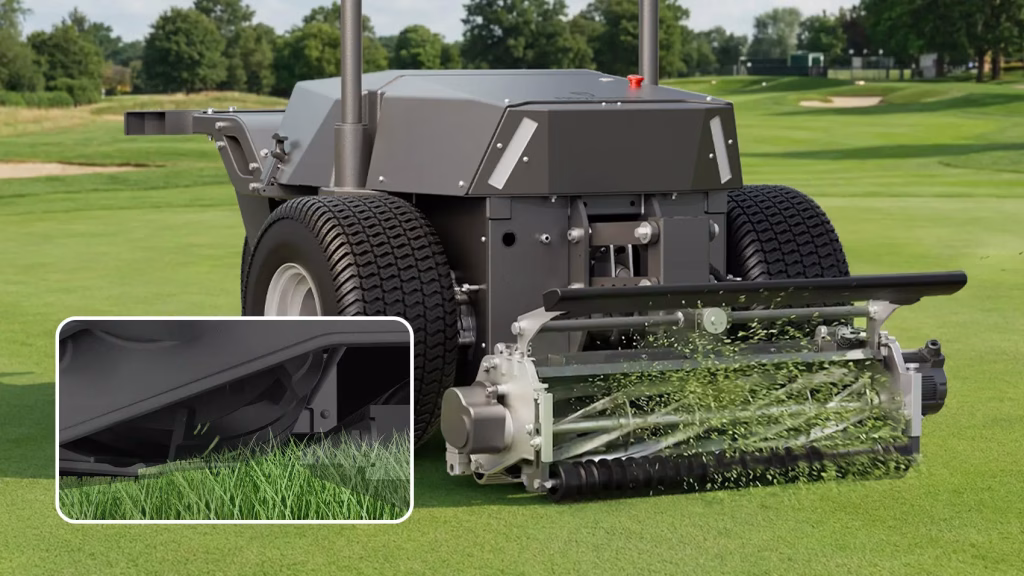

Precision Cutting
Achieve clean, scissor-like cuts with a reel system, minimizing leaf tearing and promoting healthier turf growth.

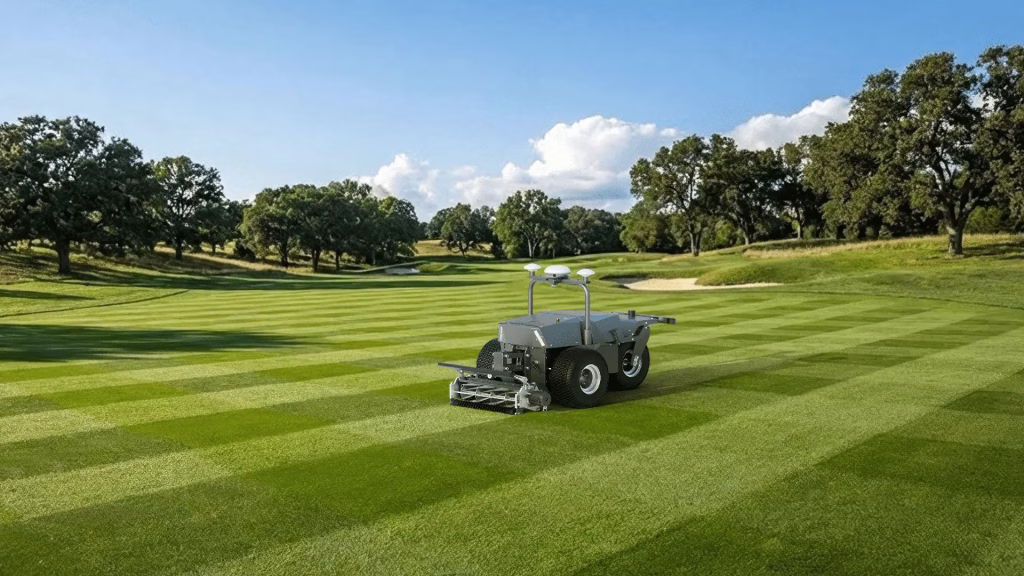

Professional-Grade Striping
Create clean, high-contrast stripes with precision roller blades. You can also customize striping widths to match your golf course’s style.

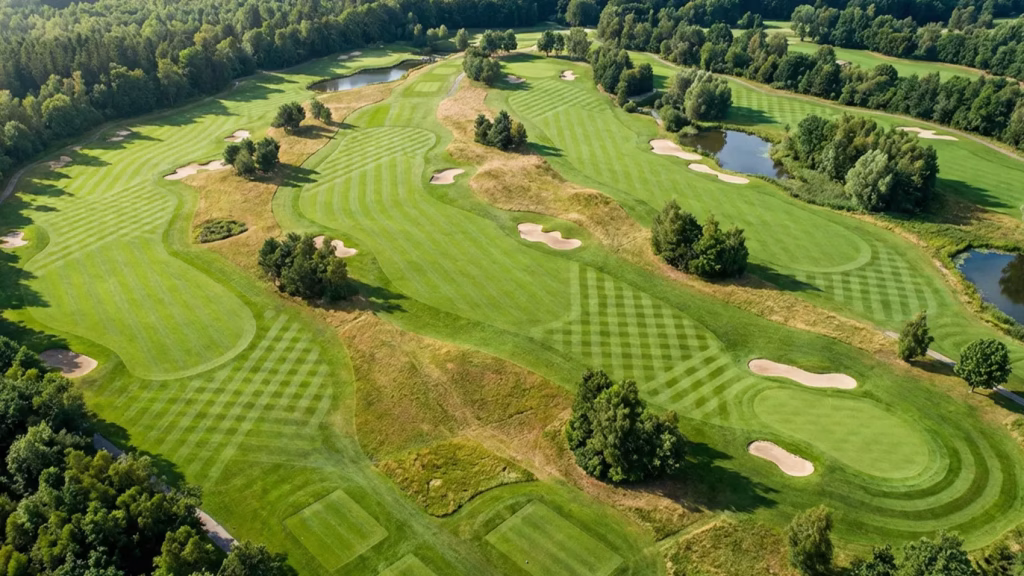

Shape the Turf, Define the Look
Adjust the mowing angle to easily change the direction of the stripes. This lets you create neat, professional, and custom patterns on your turf.
Higher Efficiency. Lower Costs.
Maximize your operational ROI by automating repetitive tasks, allowing your team and resources to work smarter while achieving more.
Do More with Less
One supervisor can remotely manage multiple mowers—freeing labour for higher-value tasks.
Night Time Quiet Operation
Enable all-day autonomous mowing, freeing up daytime hours for golf course activities and reducing distraction to players.
Multi-Zone Management
Mow multiple zones in a single task and automatically move to the next area upon completion for seamless operation.
Hassle-Free Autonomy

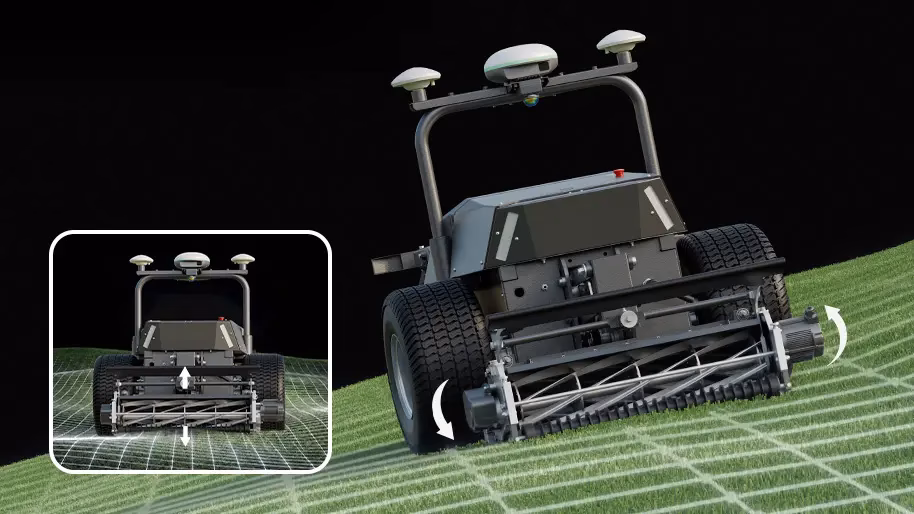

Dynamic Terrain Adaptability
Follow the turf’s natural curves automatically with the floating blade, making it easier to get a consistent cut and prevent turf scalping.

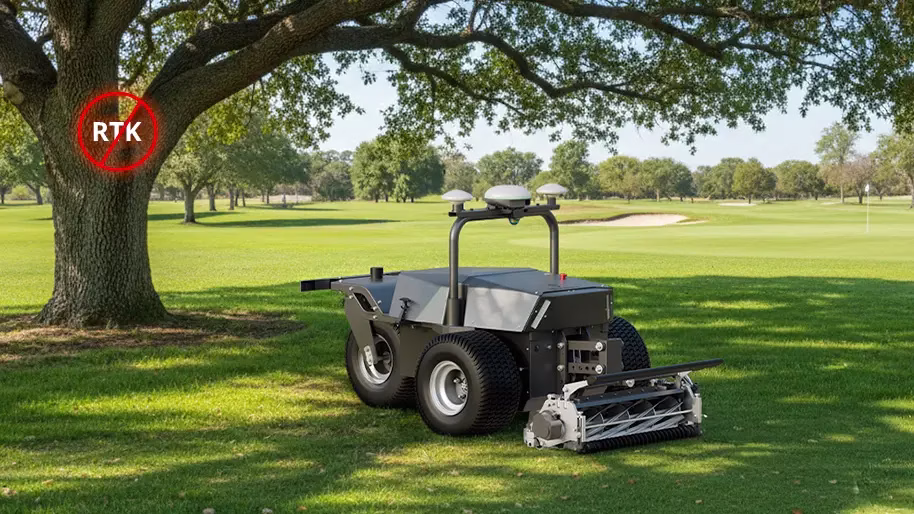

No Signal Lost Under Trees
Maintain high-precision navigation with no signal loss under trees or in signal-obstructed areas.

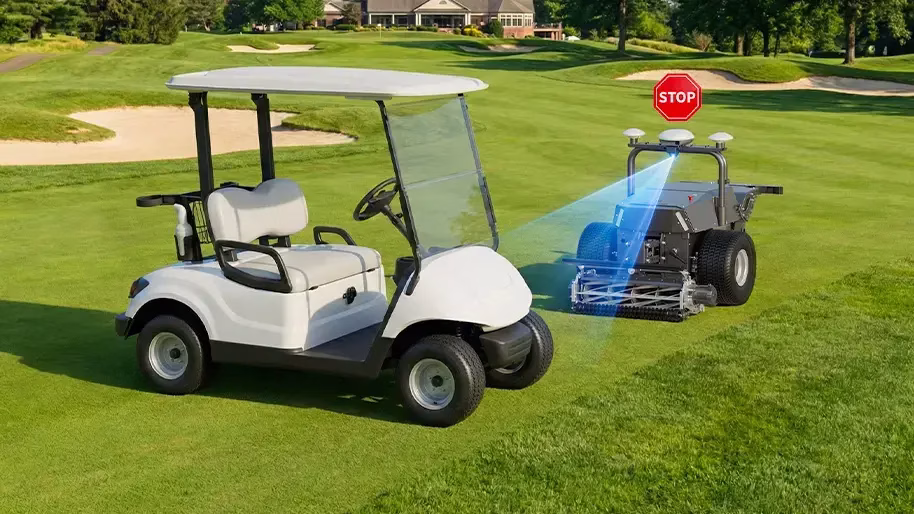

Comprehensive Safety Protection
Equipped with front and rear bumpers and LiDAR obstacle avoidance, ensure stable and secure autonomous operation.
Comprehensive Mowing Solution
The RCM01 works seamlessly with N10 CORS, P2 Scanner and GreenMaster, enabling precise mapping, smart management, and efficient mowing across diverse field conditions.

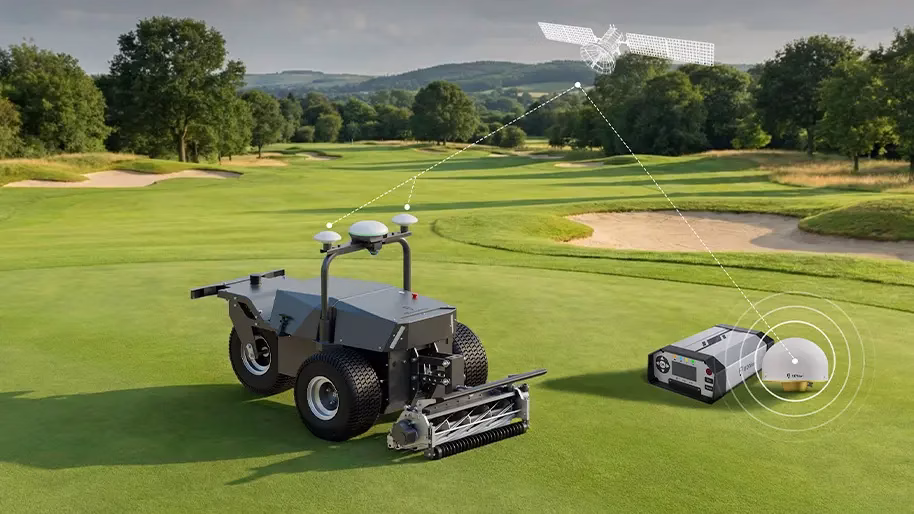

N10 CORS for Mowing
Providing stable RTK correction for mowing, the FJD Trion N10 CORS ensures precise and reliable positioning even in complex field conditions.
One Scan,
Endless Reusability
Map in minutes with the FJD P2 Scanner—no remote driving. Create a long-term digital true map, shared seamlessly across your entire robot fleet.

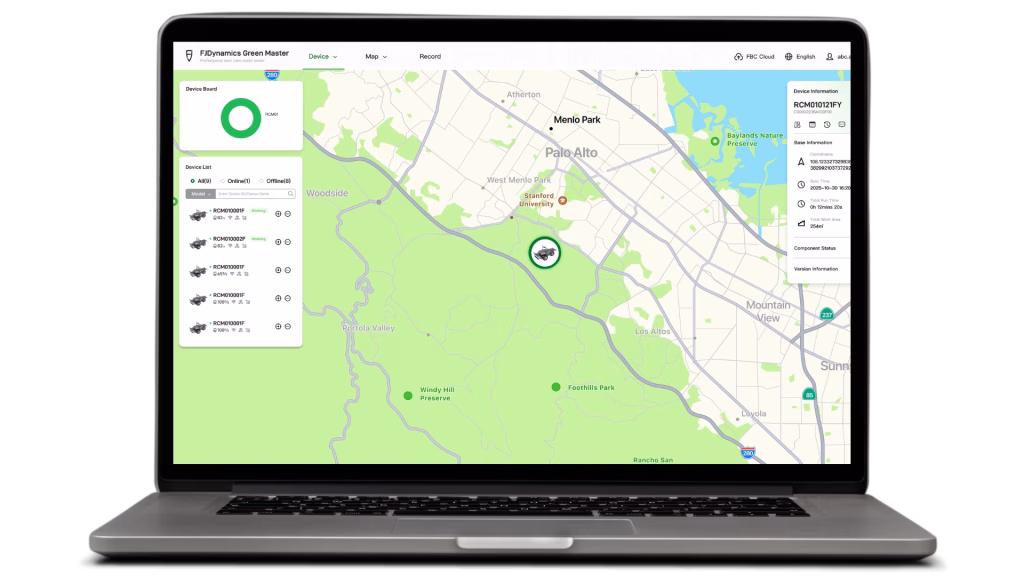

Greenmaster Platform Integration
Use the Greenmaster Platform to define map boundaries and manage all tasks in one place for streamlined digital operations.

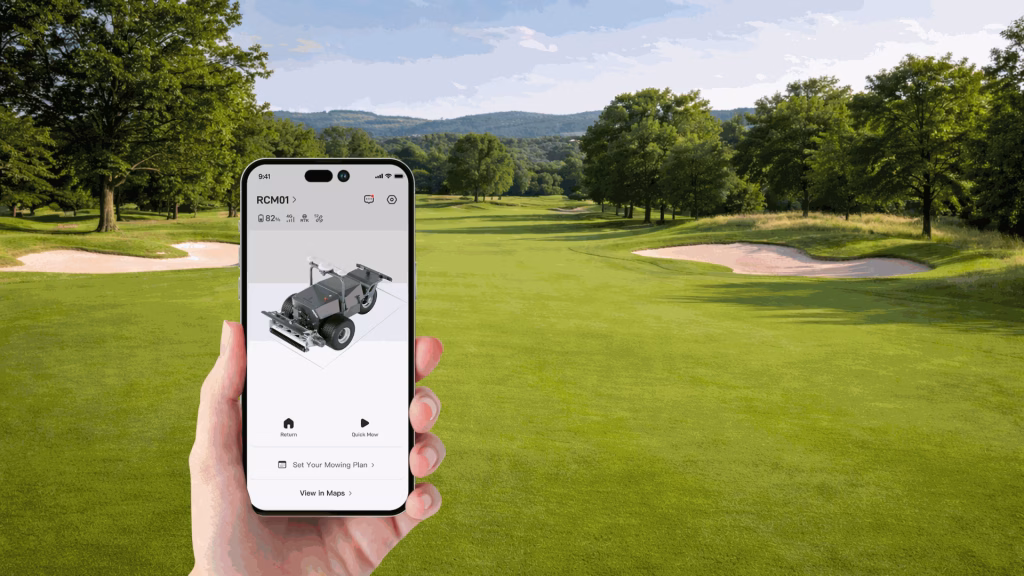

Total Control in Your App
Remotely control machines, schedule mowing plans, and monitor live or historical data.
Specifications
| Max Mowing Area* | 24-Hour Max Coverage 30,000㎡ (7.4 acres) 72-Hour Max Coverage 90,000㎡ (22.2 acres) |
| Max Mowing Area per Hour | 1,800㎡ (0.4 acres) |
| Max Mowing Area per Charge | 20,000㎡ (5 acres) |
| Max Climbing Ability | 20° |
| Max Mowing Slope | 15° |
| Boundary Type | Virtual Wire |
| Cutting Mode | Customized Angle Mowing |
| Weight | 365 kg (804.69 lb) |
| Dimensions | 1905×1077×1077 mm / 75×42.4×42.4 in. |
| Software Update | OTA |
| Connectivity | 4G, Wireless Connectivity |
| IP rating | IPX4 |
| Operating temperature | -20℃ to 45℃ (-4°F to 113°F) |
| Cutting Height | 7-44 mm / 0.3-1.7 in |
| Cutting Width | 686 mm / 27 in. |
| Reel Unit Weight | 65 kg (143.3 lb) |
| Reel Unit Dimensions | 1000×370×350 mm / 39.4×14.6×13.8 in. |
| Reel Speed | 300–2200 RPM |
| Number of Blades | 1 |
| Reel Diameter | 177mm / 7 in. |
| Reel Width | 685mm / 27 in. |
| Fast Battery Swapping | Enabled |
| Battery capacity | 8 kWh |
| Battery Life | 10 Hours |
| Charging Time | 5 Hours |
| Rated Operating Voltage | 48 V DC |
| Complete Mower | Standard |
| Portable Charger | Standard |
| Tablet | Standard |
| Bedknife*2 | Standard |
| V4e Handheld Point Marker | Standard |
| P2 Scanner | Optional |
| FJD Base Station | Optional |
| *Calculated based on 24-hour use. The actual coverage depends on your specific working hours. |
